Composite Precast Cement Wall Panel

Composite Precast Cement Wall Panel
Product Introduction:
Composite precast cement wallboard is a new type of building material, widely used in residential construction, public buildings, industrial plants and other fields.
Send Inquiry
Description
Technical Parameters
Product Overview


Composite prefabricated cement wallboard, also known as prefabricated integrated board, refers to the wall board that is first formed by connecting a variety of structural layer materials together in the factory, and then the finished wall board is shipped to the site for installation.

20241219140733







product-1600-2049

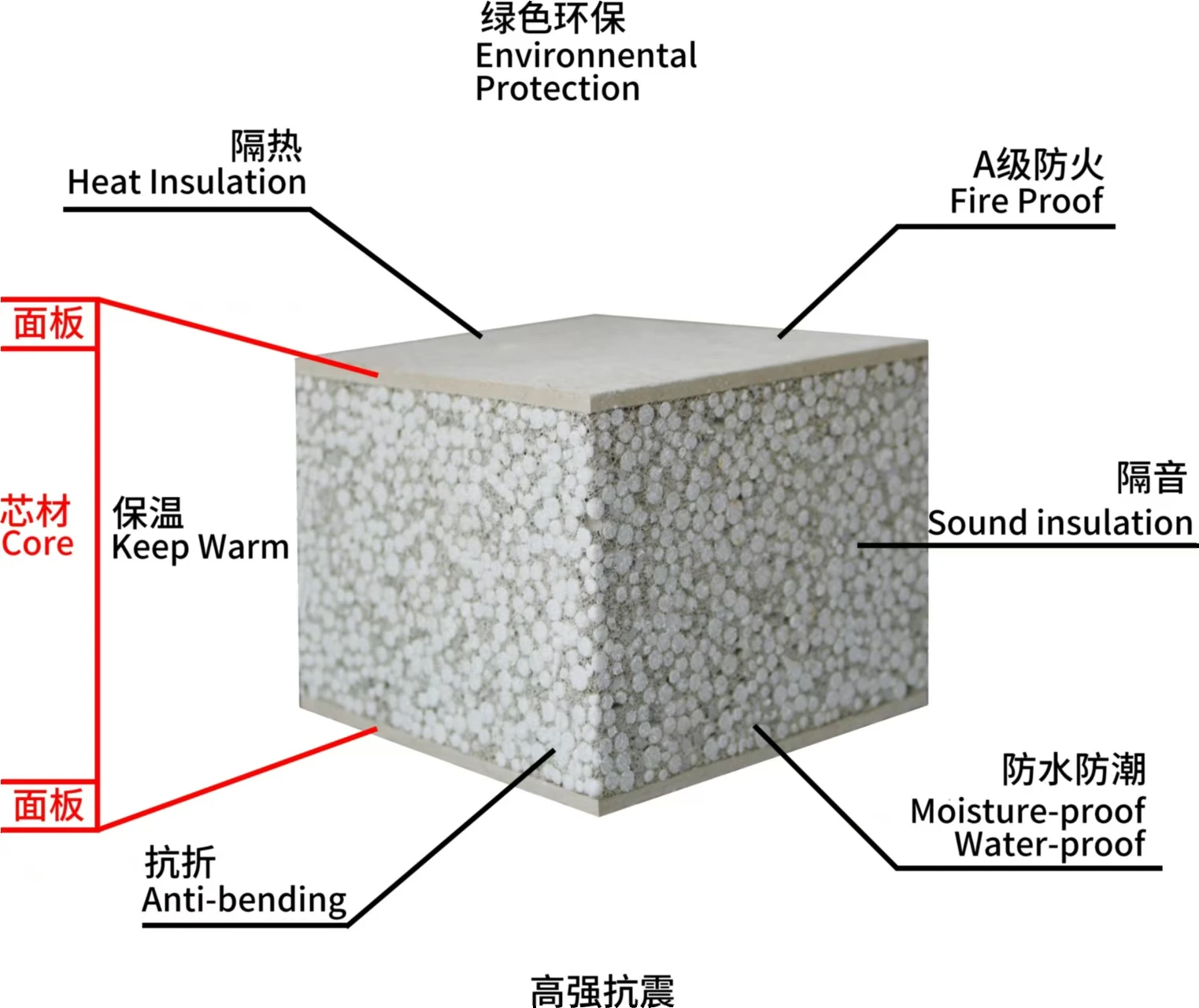

Key Features





Stable quality

In the factory molding, the quality is better guaranteed, the quality of each wall panel is very stable.

Easy installation

After the wall panel is made, it is directly transported to the site for installation, which greatly improves the construction speed and reduces the construction difficulty.

A variety of properties

according to different needs, you can add thermal insulation, sound insulation, waterproof, fireproof and other structural layers, with a variety of properties.

Wide range of design

Different models and sizes of wall panels can be manufactured according to architectural design needs to meet the application needs of different scenarios.

Saving labor costs

Compared with the traditional on-site wall building method, prefabricated wall panels can greatly reduce the use of labor and reduce costs in production and construction.

Specification


Size:mm Weight:kg/pcs Usage Notes
2270/2440*610*60 62~65 roof/interior wall The volume weight can be adjusted in the range of 650-750 according to the customer's requirements for weight
2270/2440*610*75 75~82 interior wall
2270/2440*610*90 84~89 interior wall
2270/2440*610*100 94~99 interior wall/exterior wall
2270*2440*610*120 112~119 interior wall/exterior wall
2270/2440*610*150 135~142 interior wall/exterior wall
2270/2440*610*180 162~171 exterior wall
2770/2440*610*200 180~190 exterior wall





Product Parameter





1734931300015

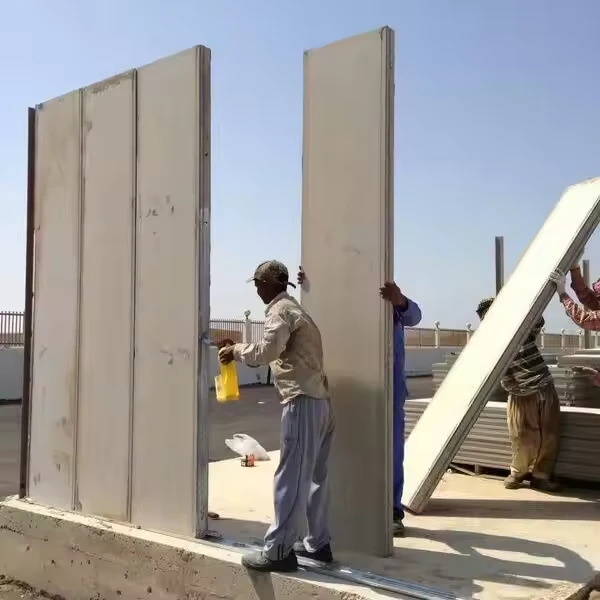

Application Shows


8b6c16c55846855ee89b355475a6826e

05a96a29fbd85d90d9605daa680ce88

4148821957a103b4c16020b7fe38449f

2

Unnamed


1fdb11def4a0c9fd4f2887a88f5953e



201905151006212



201809121522513

ba3d61faec8b12ff4444c3e68f68839

Our Certificate





20241217152524
20241217152511
